What is the maximum frame rate and resolution of the Pixboom Spark?

The Pixboom Spark delivers unparalleled slow-motion performance, capturing visually lossless RAW footage at up to 1000fps in 4K resolution (887 fps at 16:9), and pushing the limits to 1800fps at 2K.

Does the Pixboom Spark feature a global shutter?

Yes, it is equipped with a revolutionary S35 BSI sensor with a global shutter. This ensures completely distortion-free motion with no jelly effects or skewed lines, making it perfect for high-speed action and visual effects.

Is the recording time limited by a RAM buffer?

No. Unlike traditional high-speed cameras limited by expensive RAM buffers (which typically only allow seconds of recording), the Pixboom Spark offers unlimited recording time. Utilizing the 2.5TB Pixboom Pro Card, you can record approximately 7 minutes of continuous RAW footage in 4K at 1000fps.

How does the Pixboom Spark perform in low-light environments?

Exceptional. It utilizes the world's first high-speed Back-Side Illuminated (BSI) sensor for creators, combined with Dual Native ISO (ISO 400 and ISO 1600). This provides 13 stops of dynamic range, allowing you to shoot clean, professional slow-motion footage using just 25% of the lighting typically required.

What lens mounts are compatible with the Pixboom Spark?

The camera features a versatile electronic interchangeable locking mount system. Depending on your workflow, you can equip the Spark with an active-lock E-mount, EF-mount, or PL-mount adapter, all supporting full power and data transfer.

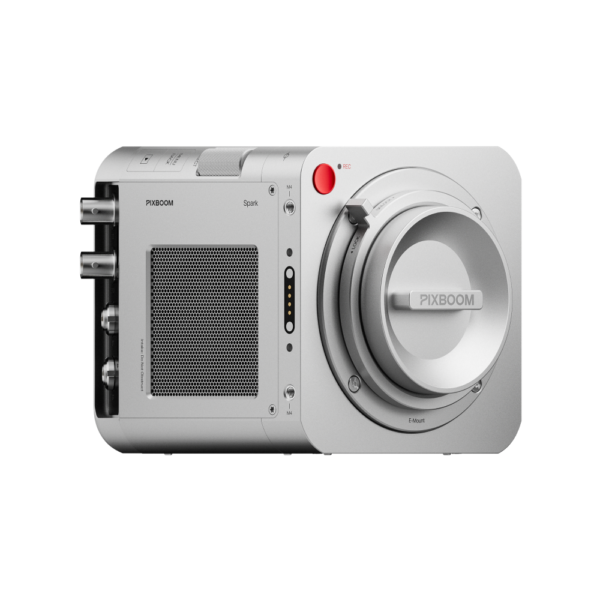

Pixboom Spark | 4K 1000fps High-Speed Cinema Camera

Pixboom Spark

World's First Cinema BSI High-Speed Camera

USD $13,999.00

Smart Workflow

Never Interrupt Your Flow.

Unlimited recording time for non-stop creativity.

Record as long as your SSD allows. Swap storage when you need more space and keep shooting.

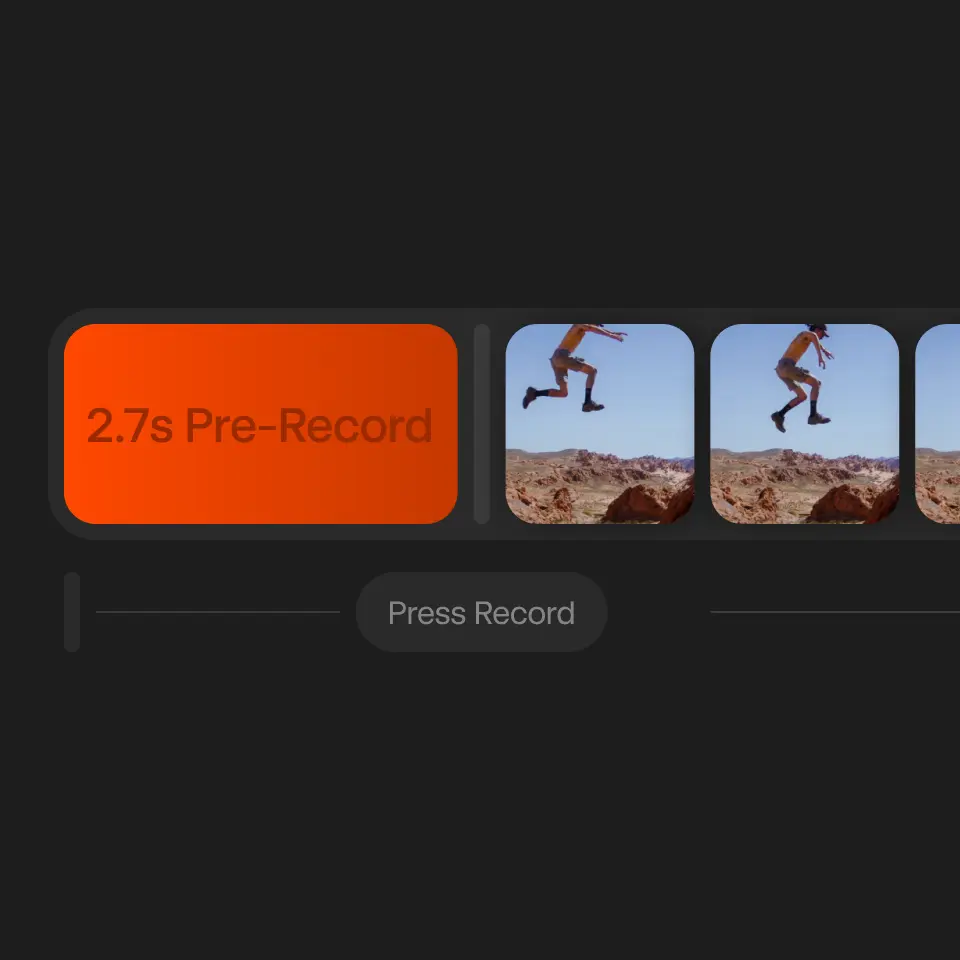

Capture what happens before you press record.

2.7s Pre-Record at max frame rate in Open Gate, so unexpected moments are never missed.

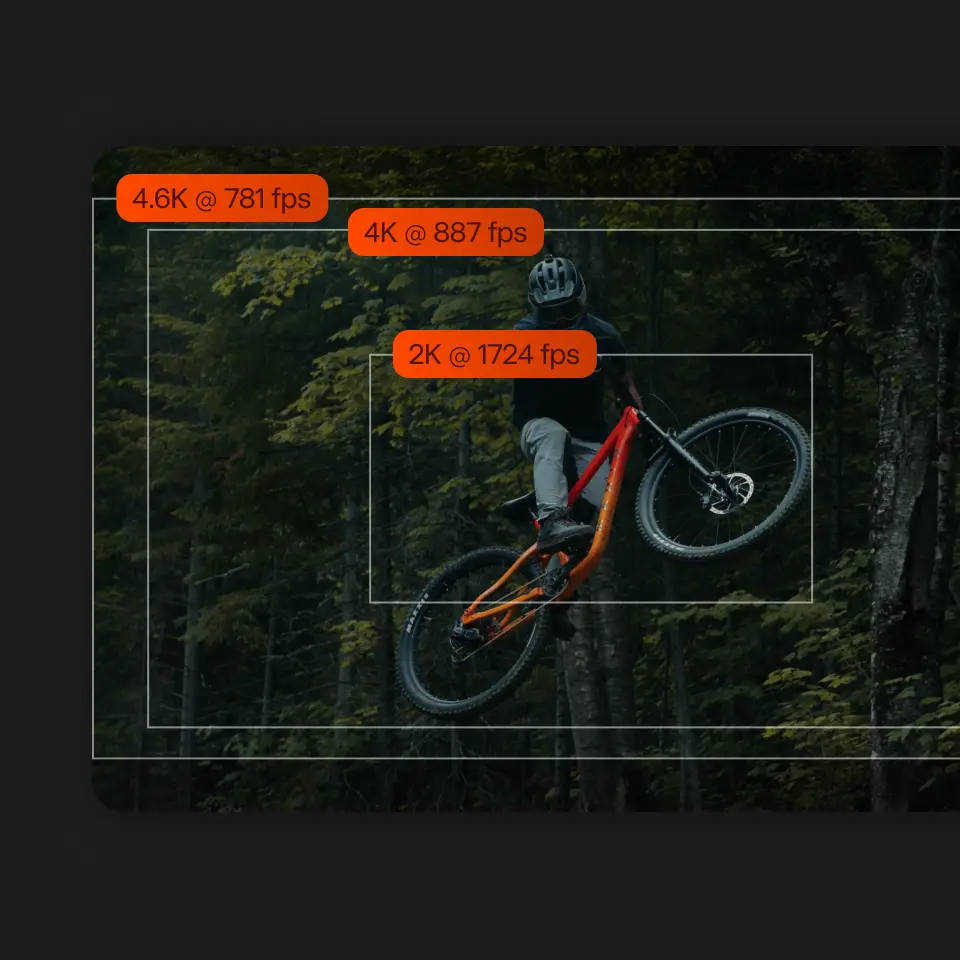

Define your resolution, unleash impossible speeds.

Customize your ROI to balance resolution and frame rate, with speeds up to 20,000 fps.

In-Camera Anamorphic De-Squeeze

Expand your horizon in real-time.

Spark supports in-camera de-squeeze for anamorphic lenses, letting you see the frame exactly as intended. Unlock even higher frame rates through vertical mounting, pushing your slow-motion capabilities further than ever.

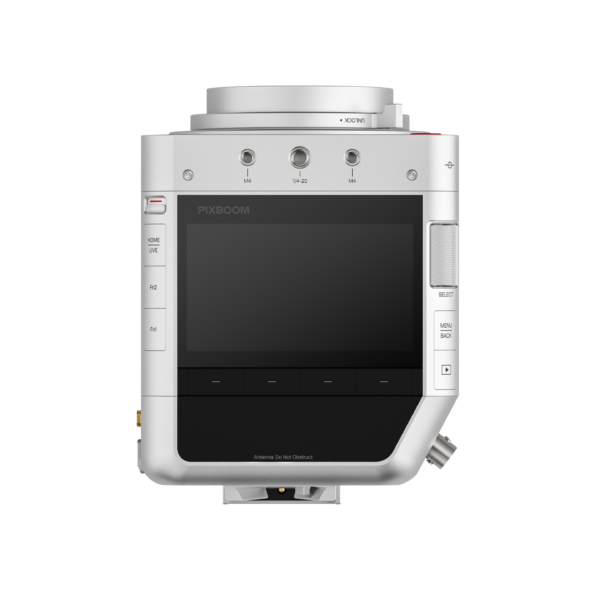

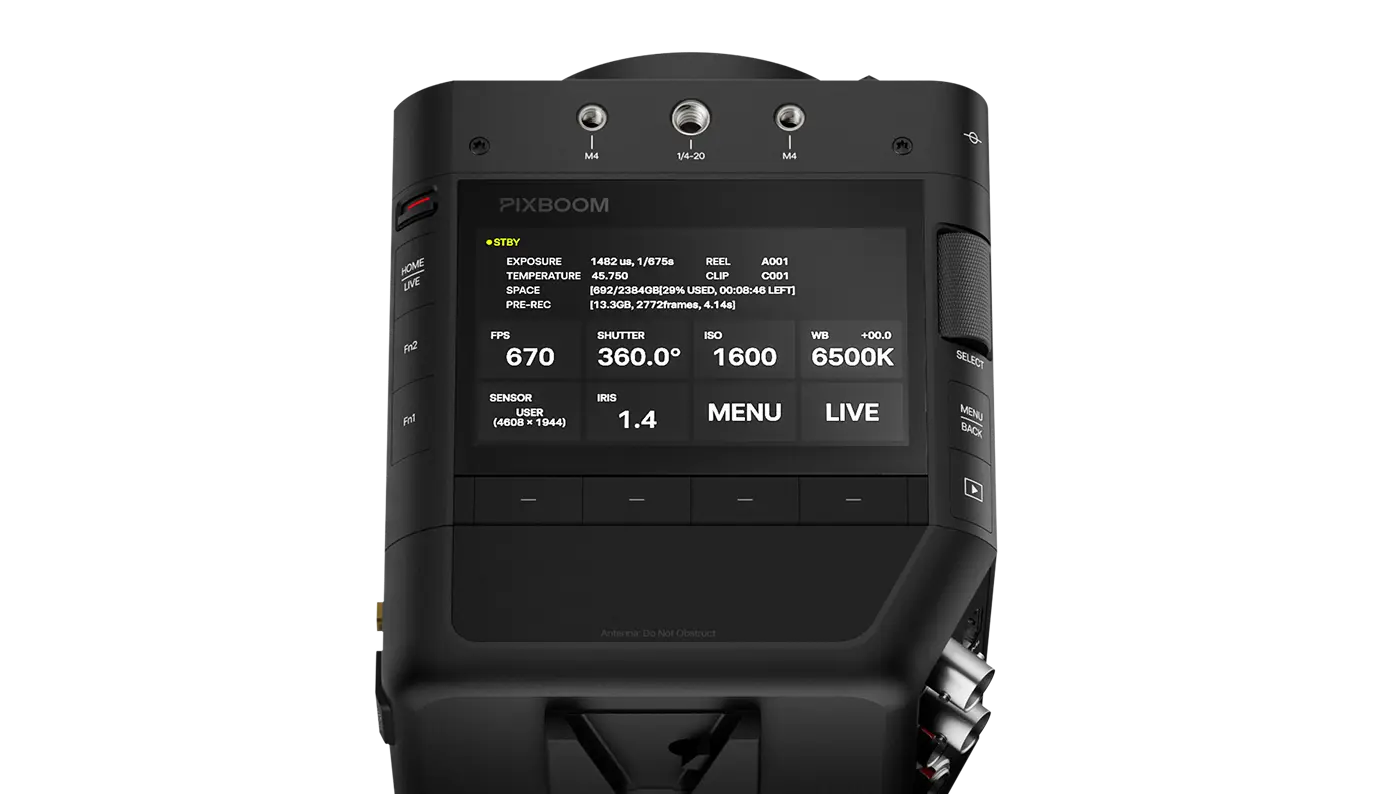

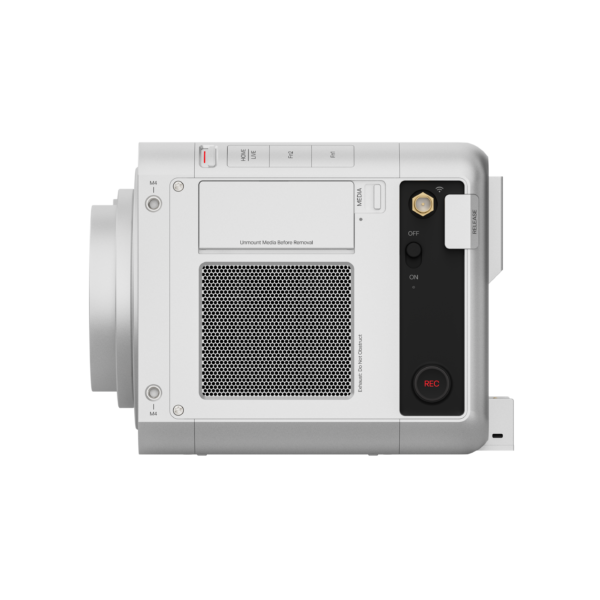

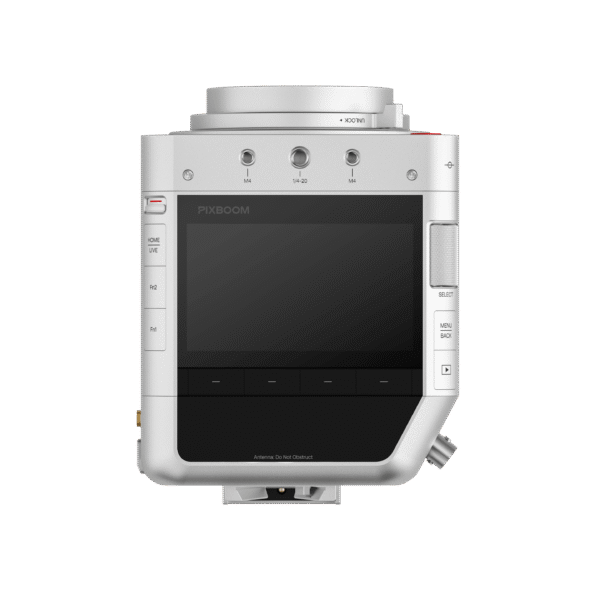

Pixboom Spark touchscreen and physical controls

Intuitive Control at Your Fingertips

Dual control: touchscreen and physical buttons.

Pixboom OS makes camera control simple and intuitive. Switch between responsive touchscreen gestures and physical buttons for the control you prefer.

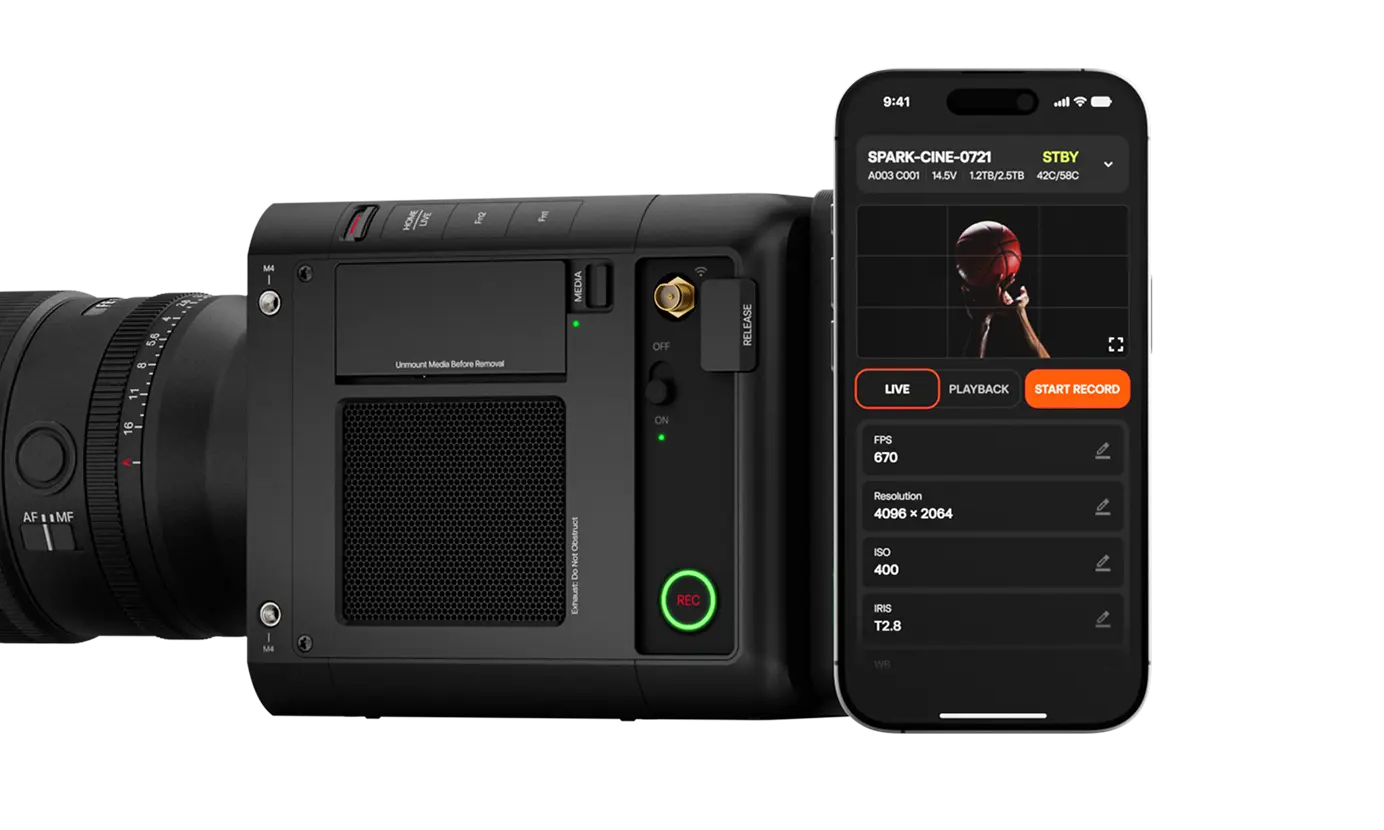

Wireless Freedom

Control without boundaries.

Connect via Wi-Fi to remotely monitor and control Spark. Adjust settings, start or stop recording, and preview your shot from your mobile device.

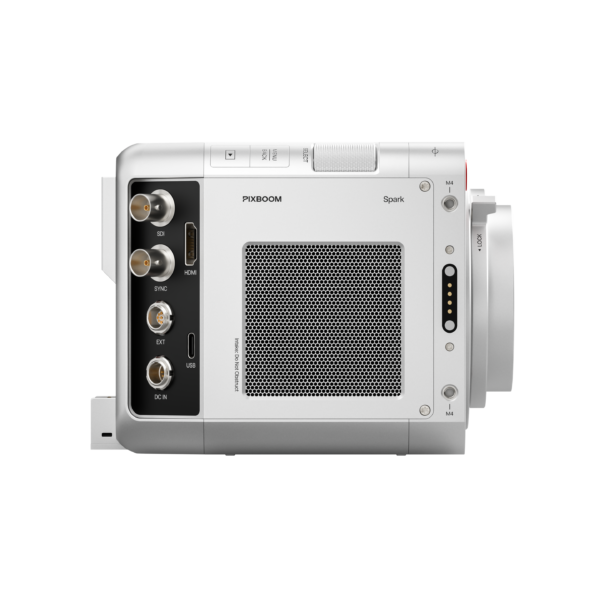

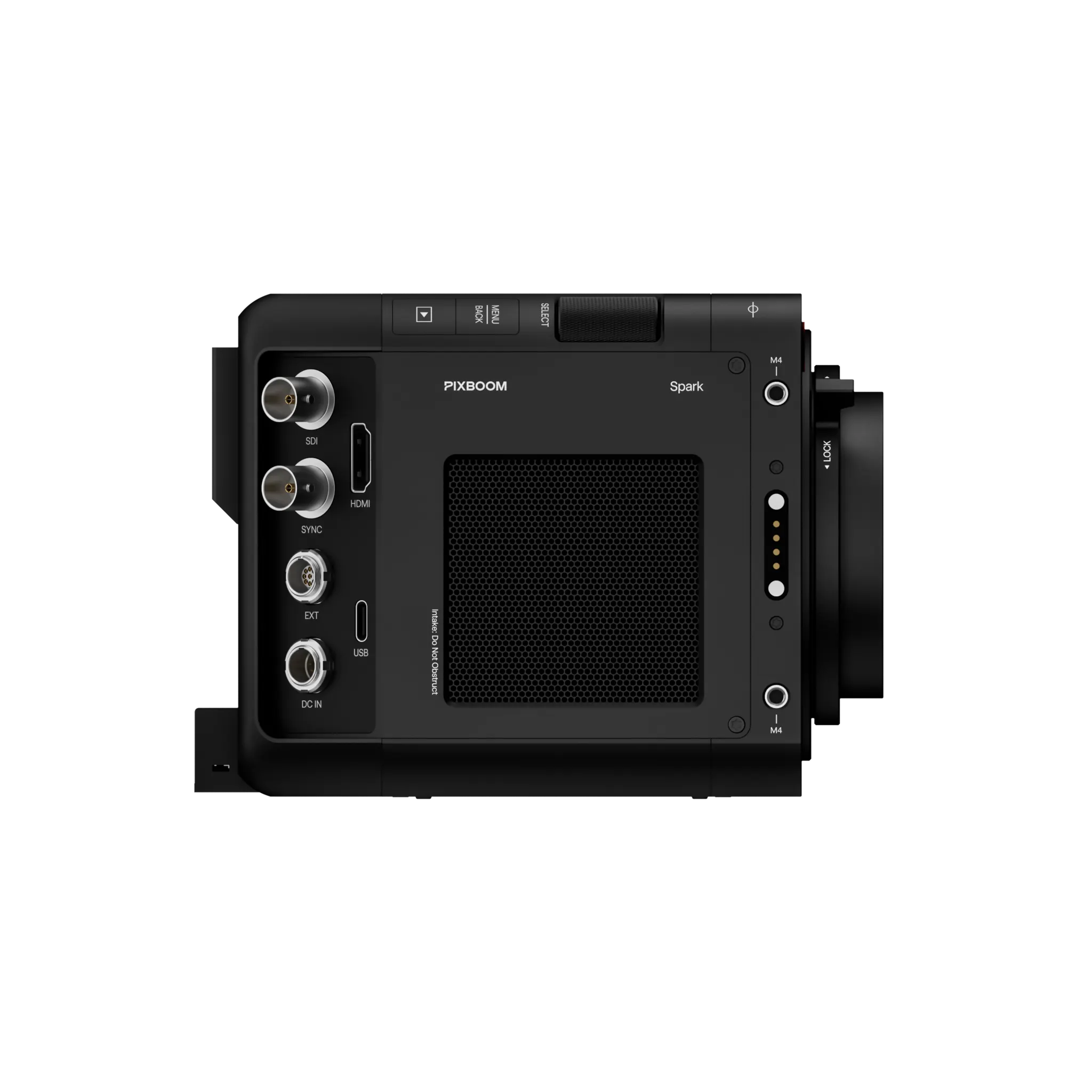

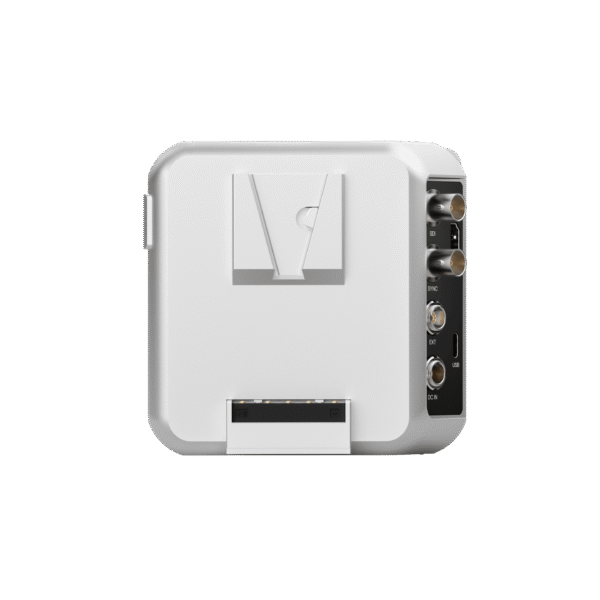

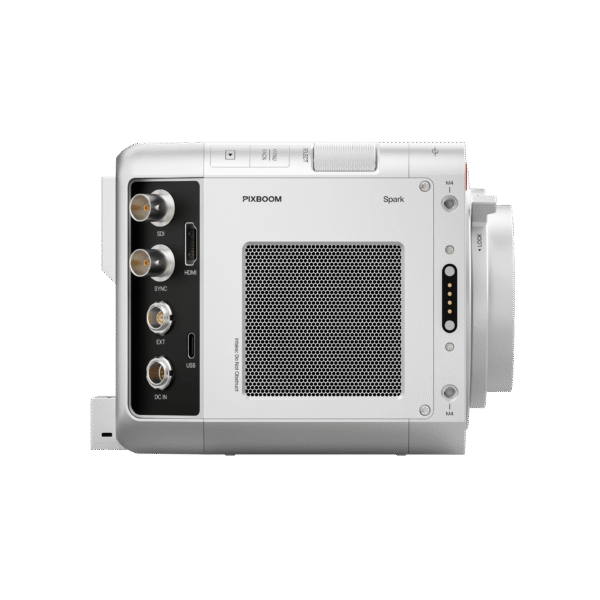

The Spark camera’s connector panel with SDI, sync, HDMI, EXT, USB and DC-in ports

Professional Integration. Ready for Anything.

12G-SDI

HDMI 2.0

Integrated I/O

V-Lock

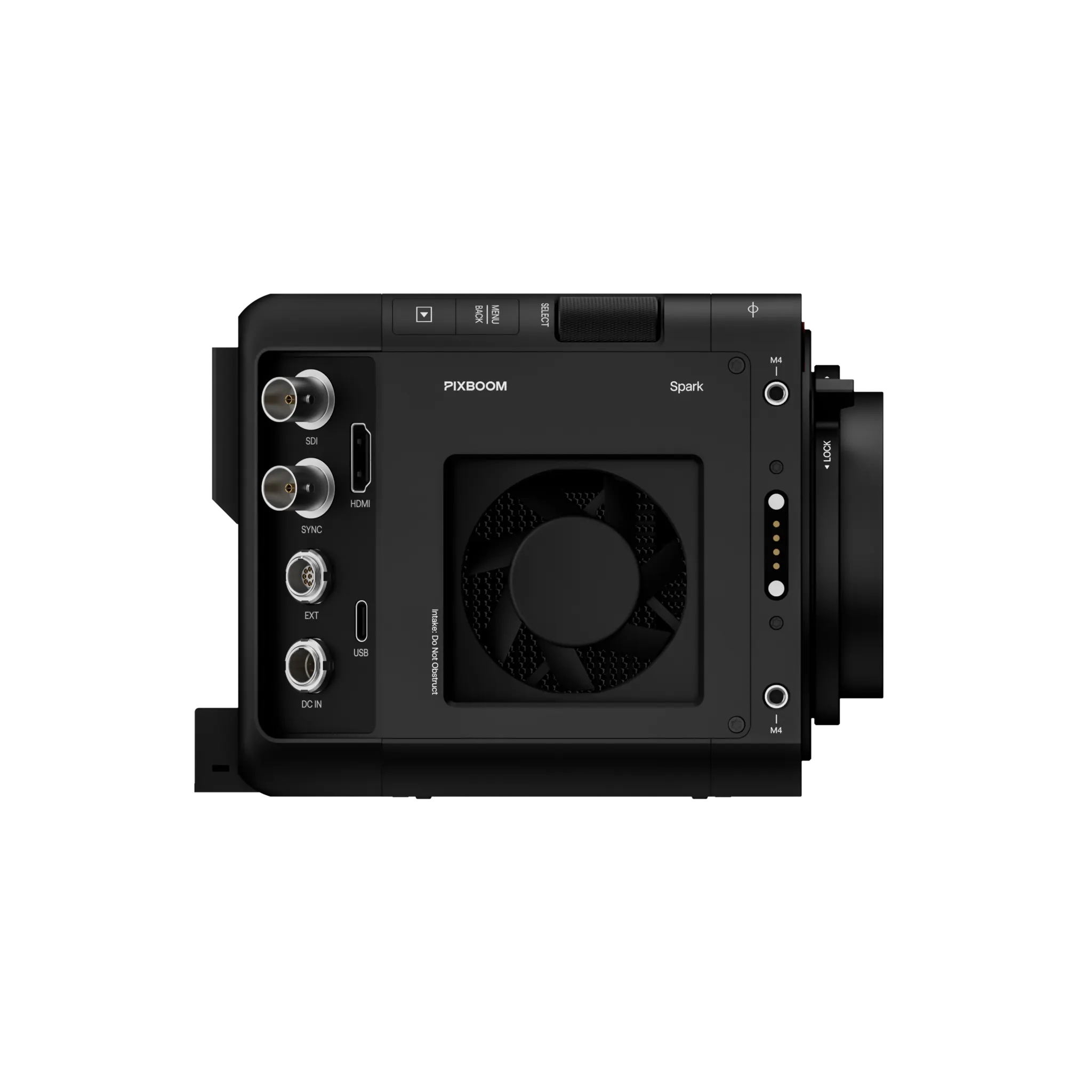

Cooling System

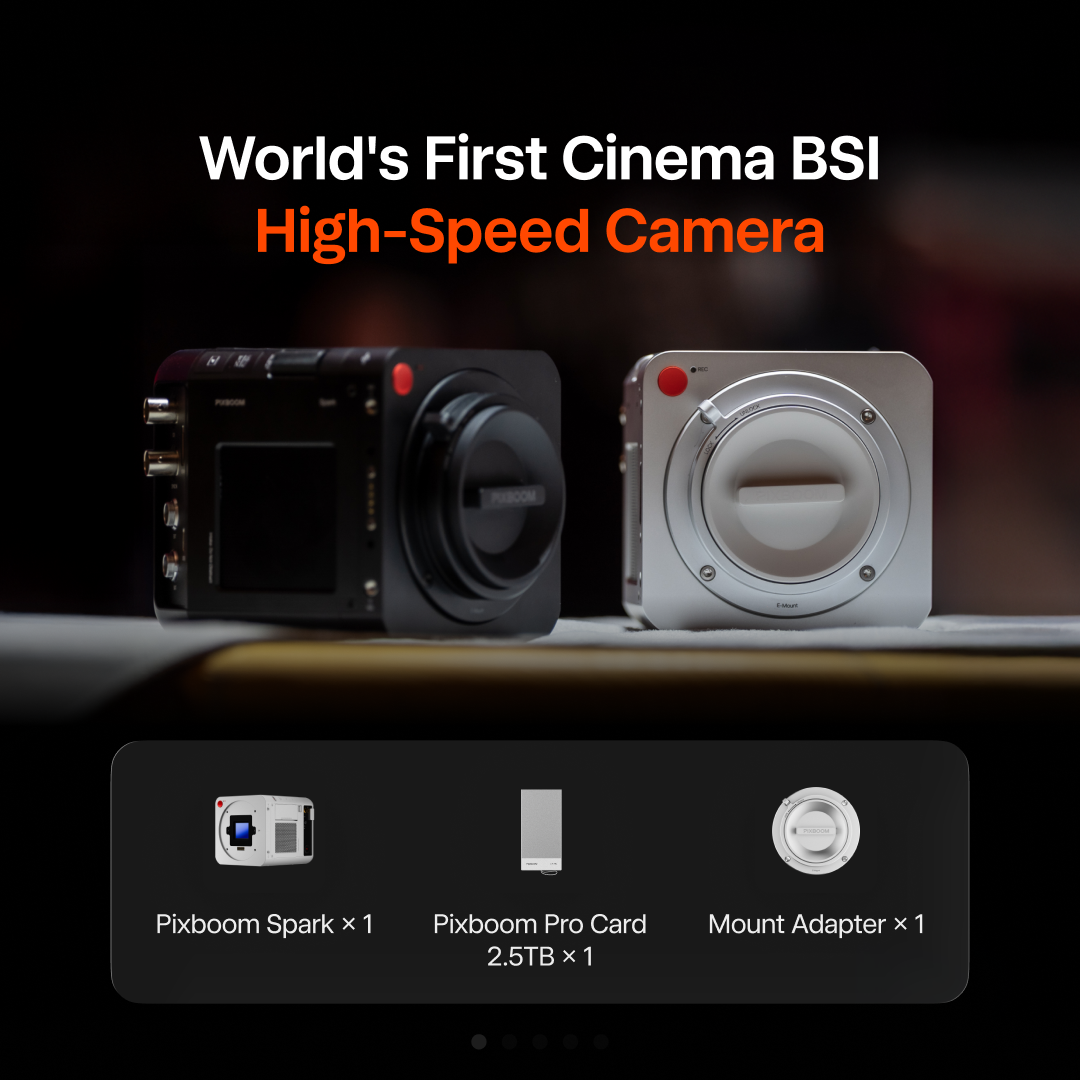

What’s in the box.

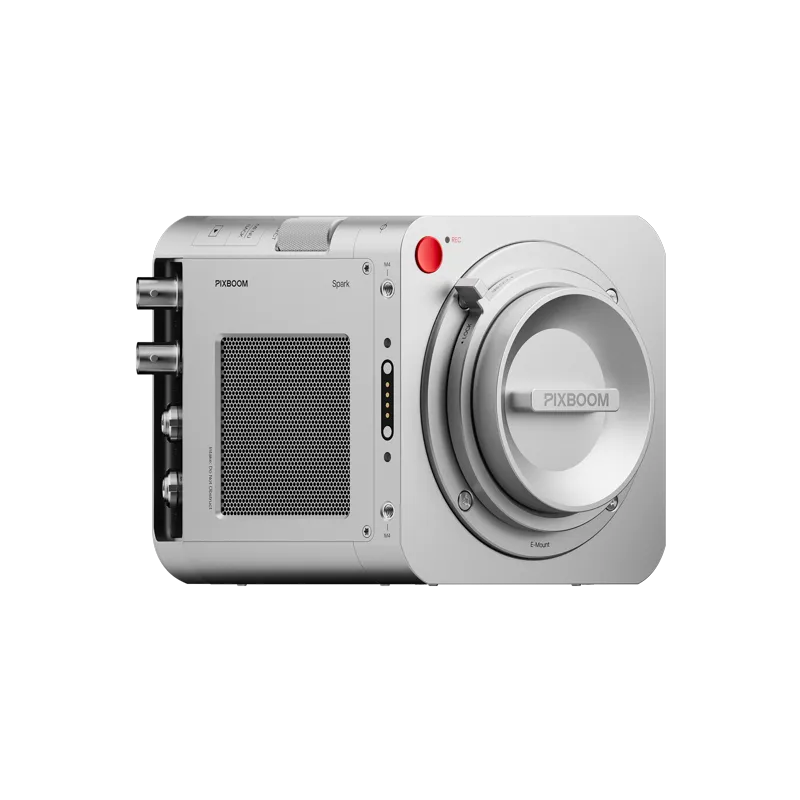

Pixboom Spark Camera × 1

Pixboom Pro Card 2.5TB × 1

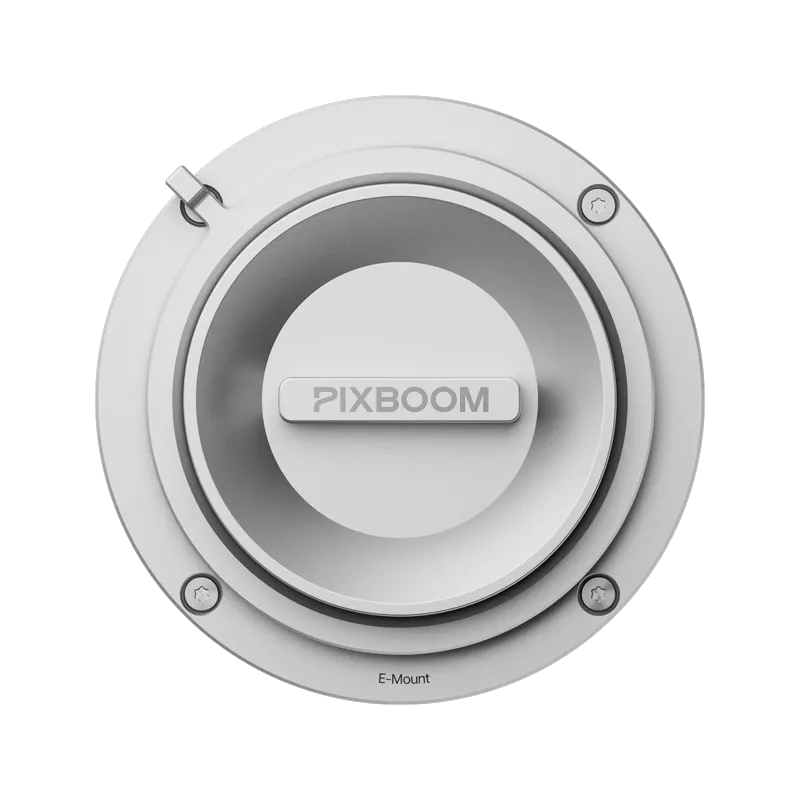

Pixboom interchangeable lens mount adapter

Pixboom Mount Adapter × 1

Warranty & After-Sales Service.

2-Year Warranty Coverage you can trust

Local Repair Centers Support in key countries

24Hr Response Quick help when you need it

FAQ

Which payment methods are supported?

We accept one-time payments via Visa, MasterCard, Affinity Card, and American Express. All card transactions are subject to issuer authorization. Orders may be delayed if authorization fails.

Where do you ship, and what fees apply?

We ship to major countries and regions worldwide. Shipping fees include import duties and taxes (unless otherwise noted):

USD $450 — United States, United Kingdom, Canada, France, Czech Republic, Denmark, Finland, Luxembourg, Netherlands, Slovakia, Slovenia, Spain, Switzerland, Bulgaria, Greece, Italy, Latvia, Lithuania, Portugal.

USD $550 — Australia, New Zealand, Hungary, Belgium.

*Shipping to countries and regions not listed above is not available at this time.

If your country or region isn’t listed above, please contact us at support@pixboom.com for more information. You can also contact us to check whether offline purchase options are available.

How can I purchase Pixboom Spark if online ordering isn’t available in my region?

In certain countries and regions, Pixboom Spark is available exclusively through our authorized regional distributors.

If you’re located in one of the following regions, please contact us at support@pixboom.com, and we’ll connect you with the appropriate distributor: Japan, Mexico, India, Norway, Sweden, the United Arab Emirates, Bahrain, Egypt, Kuwait, Saudi Arabia, Turkey, and South America.

Our team will be happy to assist you with the next steps.

Sensor readout	Global shutter
Sensor type	14.2 MP Super 35 mm global shutter CMOS
Sensor size	4608 × 3072 \| 25.34 × 16.90 mm (diagonal: 30.46 mm)
Dynamic range	13 stops

Sensor readout

Global shutter

Sensor type

14.2 MP Super 35 mm global shutter CMOS

Sensor size

4608 × 3072 | 25.34 × 16.90 mm (diagonal: 30.46 mm)

Dynamic range

13 stops

Type	Interchangeable locking mount (E, EF, PL)
Electronic communication	Support

Type

Interchangeable locking mount (E, EF, PL)

Electronic communication

Support

Weight (body only)	Approx. 2.42 lb (1.1 kg)
Material	Aluminum alloy
Dimensions (excluding the mount adapter)	4.25 × 4.33 × 5.12 in (108 × 110 × 130 mm)  (H × W × L, largest fixed dimensions)
Media type	Removable Pixboom Pro Card
Media type export speed	20 Gbps (USB 3.2 Gen 2×2)
Media export method	Export via Type-C without requiring any card reader
Screen	3.5 in 6.22 M-dot 16:9 screen

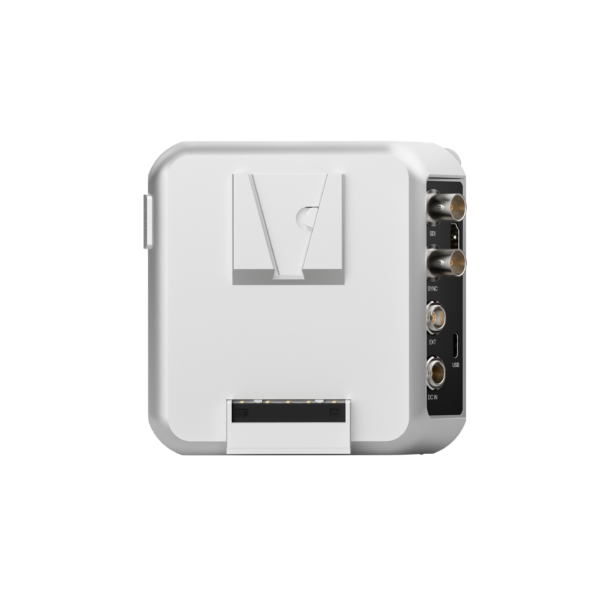

Battery attachment	Integrated V-Lock battery interface optimized for V-Lock batteries

Weight (body only)

Approx. 2.42 lb (1.1 kg)

Material

Aluminum alloy

Dimensions (excluding the mount adapter)

4.25 × 4.33 × 5.12 in (108 × 110 × 130 mm)

 (H × W × L, largest fixed dimensions)

Media type

Removable Pixboom Pro Card

Media type export speed

20 Gbps (USB 3.2 Gen 2×2)

Media export method

Export via Type-C without requiring any card reader

Screen

3.5 in 6.22 M-dot 16:9 screen

Battery attachment

Integrated V-Lock battery interface optimized for V-Lock batteries

Operating temperature	32 °F to 104 °F (0 °C to 40 °C)
Relative humidity	0% to 85% non-condensing
Storage temperature	−4 °F to 140 °F (−25 °C to 60 °C)

Operating temperature

32 °F to 104 °F (0 °C to 40 °C)

Relative humidity

0% to 85% non-condensing

Storage temperature

−4 °F to 140 °F (−25 °C to 60 °C)

Max data rates	Up to 10 GB/s using Pixboom Pro Card
Pixboom RAW solution max frame rates	4.6K Open Gate (3:2): 4608 × 3072 @ 670 fps 4.6K (16:9): 4608 × 2592 @ 781 fps 4.6K (2:1): 4608 × 2304 @ 887 fps 4.6K (2.37:1): 4608 × 1944 @ 1025 fps 4.6K (4:1): 4608 × 1152 @ 1724 fps 4K (16:9): 4096 × 2304 @ 887 fps 4K (2:1): 4096 × 2048 @ 994 fps 4K (2.37:1): 4096 × 1728 @ 1171 fps 4K (4:1): 4096 × 1024 @ 1926 fps 2K (16:9): 2048 × 1152 @ 1724 fps 2K (2.37:1): 2048 × 864 @ 2182 fps 2K (4:1): 2048 × 512 @ 3625 fps
Supported formats	4.6K (Open Gate 3:2, 16:9, 2:1, 2.37:1, 4:1) 4K (16:9, 2:1, 2.37:1, 4:1) 2K (16:9, 2.37:1, 4:1) Custom Resolution
Max. resolution	4.6K Open Gate (3:2): 4608 × 3072
Max. frame rate	Up to 3625 fps (depending on selected resolution)
Exposure control	Shutter angle adjustment
ISO	400 640 800 1250 1600
White balance	Adjustable Kelvin (K) and CC (green/magenta offset)
Video outputs	SDI: 12G-SDI output HDMI: HDMI 2.0 output Sync Port: Genlock/Timecode support via extension port
Mechanical mounting	1/4-20 3/8-16 Multiple M4 mounting points
Cooling system	Active cooling with intake and exhaust ventilation
Recording media	Dedicated Pixboom Pro Card

Max data rates

Up to 10 GB/s using Pixboom Pro Card

Pixboom RAW solution max frame rates

4.6K Open Gate (3:2): 4608 × 3072 @ 670 fps
4.6K (16:9): 4608 × 2592 @ 781 fps
4.6K (2:1): 4608 × 2304 @ 887 fps
4.6K (2.37:1): 4608 × 1944 @ 1025 fps
4.6K (4:1): 4608 × 1152 @ 1724 fps

4K (16:9): 4096 × 2304 @ 887 fps
4K (2:1): 4096 × 2048 @ 994 fps
4K (2.37:1): 4096 × 1728 @ 1171 fps
4K (4:1): 4096 × 1024 @ 1926 fps

2K (16:9): 2048 × 1152 @ 1724 fps
2K (2.37:1): 2048 × 864 @ 2182 fps
2K (4:1): 2048 × 512 @ 3625 fps

Supported formats

4.6K (Open Gate 3:2, 16:9, 2:1, 2.37:1, 4:1)
4K (16:9, 2:1, 2.37:1, 4:1)
2K (16:9, 2.37:1, 4:1)
Custom Resolution

Max. resolution

4.6K Open Gate (3:2): 4608 × 3072

Max. frame rate

Up to 3625 fps (depending on selected resolution)

Exposure control

Shutter angle adjustment

ISO

400
640
800
1250
1600

White balance

Adjustable Kelvin (K) and CC (green/magenta offset)

Video outputs

SDI: 12G-SDI output
HDMI: HDMI 2.0 output
Sync Port: Genlock/Timecode support via extension port

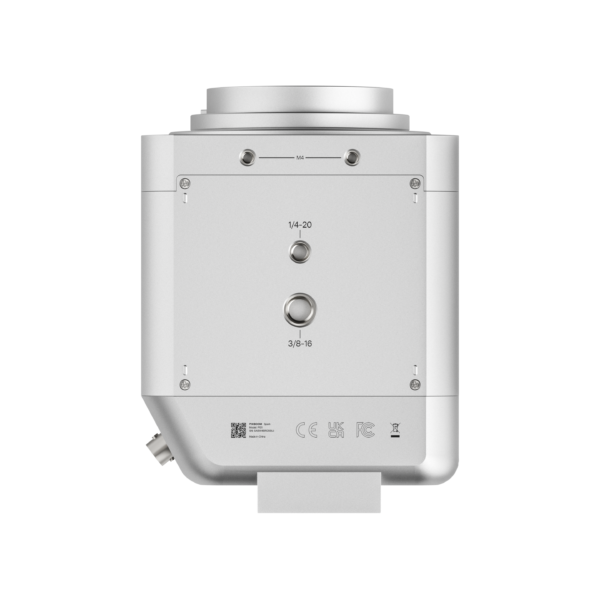

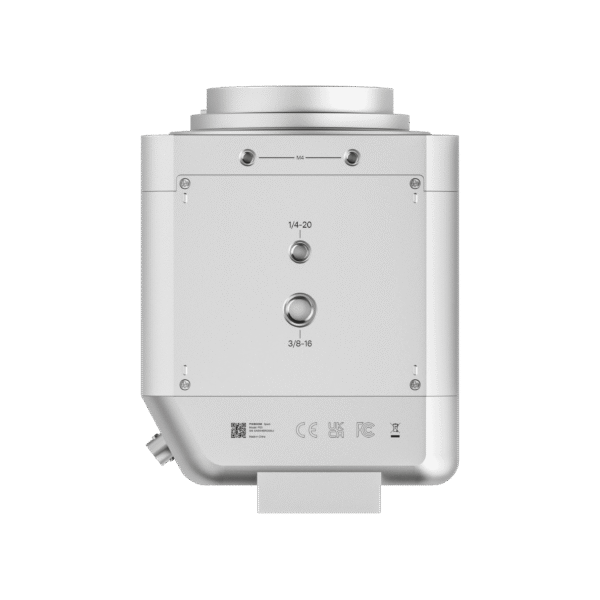

Mechanical mounting

1/4-20
3/8-16
Multiple M4 mounting points

Cooling system

Active cooling with intake and exhaust ventilation

Recording media

Dedicated Pixboom Pro Card

Remote control	Wi-Fi local area network for camera control UART control via 9-pin EXT port
Wi-Fi/Bluetooth frequency band	2400-2483.5 MHz 5150-5350 MHz 5725-5850 MHz
Max. RF power transmit	≤20 dBm EIRP in the 2400–2483.5 MHz band ≤20 dBm EIRP in the 5150–5350 MHz band ≤33 dBm EIRP in the 5725–5850 MHz band (or ≤20/23 dBm EIRP where TPC is not supported)
Monitor outputs	Integrated touchscreen LCD with preview and camera control 12G-SDI for 4K output HDMI 2.0 for 4K output
Additional I/O^[1]	Genlock through 9-pin EXT port Linear Timecode (LTC) through 9-pin EXT port GPIO through 9-pin EXT port

Remote control

Wi-Fi local area network for camera control
UART control via 9-pin EXT port

Wi-Fi/Bluetooth frequency band

2400-2483.5 MHz
5150-5350 MHz
5725-5850 MHz

Max. RF power transmit

≤20 dBm EIRP in the 2400–2483.5 MHz band
≤20 dBm EIRP in the 5150–5350 MHz band
≤33 dBm EIRP in the 5725–5850 MHz band (or ≤20/23 dBm EIRP where TPC is not supported)

Monitor outputs

Integrated touchscreen LCD with preview and camera control
12G-SDI for 4K output
HDMI 2.0 for 4K output

Additional I/O^[1]

Genlock through 9-pin EXT port
Linear Timecode (LTC) through 9-pin EXT port
GPIO through 9-pin EXT port

Pixboom control^[2]	Access full camera controls and live preview from mobile devices.
Pixboom Cine	Pixboom RAW Processing Software (Windows & macOS)

Pixboom control^[2]

Access full camera controls and live preview from mobile devices.

Pixboom Cine

Pixboom RAW Processing Software (Windows & macOS)

[1] These features are under development and will require the upcoming Pixboom I/O Expansion Port accessory.

[2] These features are under development and will be enabled via future firmware updates.

	Recording Codec	Recording Resolution		Max. FPS	Sensor Active Image Area (photosites)		Recording File Image Content (pixel)		Sensor Image Area (mm)		Image Circle (mm)
4.6K Open Gate 3:2	Pixboom Raw	4608	3072	670	4608	3072	4608	3072	25.34	16.90	30.46
4.6K 16:9	Pixboom Raw	4608	2592	781	4608	2592	4608	2592	25.34	14.26	29.08
4.6K 2:1	Pixboom Raw	4608	2304	887	4608	2304	4608	2304	25.34	12.67	28.34
4.6K 2.37:1	Pixboom Raw	4608	1944	1025	4608	1944	4608	1944	25.34	10.69	27.51
4.6K 4:1	Pixboom Raw	4608	1152	1724	4608	1152	4608	1152	25.34	6.34	26.12
4K 16:9	Pixboom Raw	4096	2304	887	4096	2304	4096	2304	22.53	12.67	25.85
4K 2:1	Pixboom Raw	4096	2048	994	4096	2048	4096	2048	22.53	11.26	25.19
4K 2.37:1	Pixboom Raw	4096	1728	1171	4096	1728	4096	1728	22.53	9.50	24.45
4K 4:1	Pixboom Raw	4096	1024	1926	4096	1024	4096	1024	22.53	5.63	23.22
2K 16:9	Pixboom Raw	2048	1152	1724	2048	1152	2048	1152	11.26	6.34	12.92
2K 2.37:1	Pixboom Raw	2048	864	2182	2048	864	2048	864	11.26	4.75	12.23
2K 4:1	Pixboom Raw	2048	512	3625	2048	512	2048	512	11.26	2.82	11.61
