Unleashing the
Power of Slo-Mo.

A new era of high-speed storytelling has arrived.

Order Now

Get The
Sparks.

4K@1000 FPS

2K@1800 FPS

High Sensitivity

S35 BSI Sensor with global shutter.

All-in-One Body Design

A complete unit with 4K output, touchscreen, V-mount, and pro I/O.

Pixboom RAW Solution

Visually Lossless RAW and Unlimited Recording Time.

Image Quality

See the Unseen.

Architecture

High-integration aluminum unibody.

The all-aluminum 1.1kg body (108×110×130mm) integrates display and V-mount, in your choice of silver or black.

Sensor

S35 BSI Sensor with Global Shutter.

4.6K 3:2 Open Gate resolution for ultimate creative freedom. Dual Native ISO excels in low light.

Lens Mount Adapter

Versatile Electronic Mount System.

Supports PL, EF, and E-mount lenses. Active lock design with full power and data transfer.

Pluggable Storage

20Gbps 2.5TB Pluggable Storage.

Instant media swapping for nonstop shooting. 20Gbps export speed - from set to post in seconds.

Display

3.5-inch, 6.22M-dot touchscreen.

Delivers perfect clarity even in direct sunlight. The 16:9 ratio provides true cinematic framing, protected by impact-resistant glass.

Get The
Sparks.

4K@1000 FPS

2K@1800 FPS

High Sensitivity

S35 BSI Sensor with global shutter.

All-in-One Body Design

A complete unit with 4K output, touchscreen, V-mount, and pro I/O.

Pixboom RAW Solution

Visually Lossless RAW and Unlimited Recording Time.

Design & Build

Built from the Core.

Architecture

High-integration aluminum unibody.

The all-aluminum 1.1kg body (108×110×130mm) integrates display and V-mount, in your choice of silver or black.

Sensor

S35 BSI Sensor with Global Shutter.

4.6K 3:2 Open Gate resolution for ultimate creative freedom. Dual Native ISO excels in low light.

Lens Mount Adapter

Versatile Electronic Mount System.

Supports PL, EF, and E-mount lenses. Active lock design with full power and data transfer.

Pluggable Storage

20Gbps 2.5TB Pluggable Storage.

Instant media swapping for nonstop shooting. 20Gbps export speed - from set to post in seconds.

Display

3.5-inch, 6.22M-dot touchscreen.

Delivers perfect clarity even in direct sunlight. The 16:9 ratio provides true cinematic framing, protected by impact-resistant glass.

Design & Build

Built from the Core.

Architecture

High-integration aluminum unibody.

The all-aluminum 1.1kg body (108×110×130mm) integrates display and V-mount, in your choice of silver or black.

Sensor

S35 BSI Sensor with Global Shutter.

4.6K 3:2 Open Gate resolution for ultimate creative freedom. Dual Native ISO excels in low light.

Lens Mount Adapter

Versatile Electronic Mount System.

Supports PL, EF, and E-mount lenses. Active lock design with full power and data transfer.

Pluggable Storage

20Gbps 2.5TB Pluggable Storage.

Instant media swapping for nonstop shooting. 20Gbps export speed - from set to post in seconds.

Display

3.5-inch, 6.22M-dot touchscreen.

Delivers perfect clarity even in direct sunlight. The 16:9 ratio provides true cinematic framing, protected by impact-resistant glass.

Image Quality

See the Unseen.

Experience Motion
in Unprecedented Detail.

4K@1000 FPS

2K@1800 FPS

BSI Sensor

Find Clarity in the Darkness.

Designed with a back-illuminated sensor, the Spark maximizes every photon. It delivers clean shadows and rich texture even in significantly lower light—cutting typical lighting needs by up to 25%. Less noise, more detail, and a lighter footprint on set.

Global Shutter

Speed Without Distortion.

Leave rolling shutter behind. Whether it’s a helicopter rotor or a fast whip pan, the Global Shutter ensures the integrity of every frame. Reality, preserved.

Dual Native ISO

From Bright Sun to Low Light,
Without Compromise.

Powered by Dual Native ISO architecture, precision gain tuning delivers five ISO settings — 400, 640, 800, 1250, and 1600 — with an uncompromised 13 stops of dynamic range.

A filmmaker reviewing Spark footage on a colour-grading timeline at a studio desk

Smart Workflow

Never Interrupt
Your Flow.

Swappable SSD Media

Unlimited Recording Time.

Your record time is limited only by your SSD capacity, not fixed internal storage or expensive RAM buffers. It’s high-speed without the technical bottleneck: when you need more space, just swap and keep shooting.

Pixboom RAW Solution

2.5 TB optional 4K @ 1000 fps

7 min

Traditional RAM Buffer Solution

72 GB

6 s

Never Miss the Moment with Pre-Record

Capture what happens before you press record.

Spark’s 2.7-second^[1] Pre-Record feature continuously buffers footage, preserving those spontaneous, unrepeatable moments that would otherwise be lost. When the perfect action unfolds unexpectedly, you’ve already got it.

Pre-Record

Press Record

[1] At maximum frame rate in Open Gate mode.

In-Camera Anamorphic De-Squeeze

Expand your horizon in real-time.

Spark supports in-camera de-squeeze for anamorphic lenses, letting you see the frame exactly as intended. Unlock even higher frame rates through vertical mounting, pushing your slow-motion capabilities further than ever.

Pixboom RAW Solution

Capture in True RAW.

Beyond the limit of ordinary sensors, Spark’s 12-bit^[2] RAW preserves superior dynamic range and seamless gradients. With premium optical filters for precise color fidelity—especially in the deep-red spectrum—you get the ultimate latitude to reshape reality.

[2] 10-bit RAW is currently supported. 12-bit RAW is under development and will offer higher dynamic range in a future update.

Custom ROI for Extreme Frame Rates

Define your resolution, unleash impossible speeds.

Take complete control with customizable ROI settings that let you trade resolution for extraordinary frame rates. Capture the precise detail you need at speeds up to an astonishing 20,000 fps—giving you the flexibility to reveal microscopic moments invisible to the naked eye.

A mountain biker mid-jump on a forest trail, used to show which part of the frame each ROI setting keeps

4.6K @ 670 fps

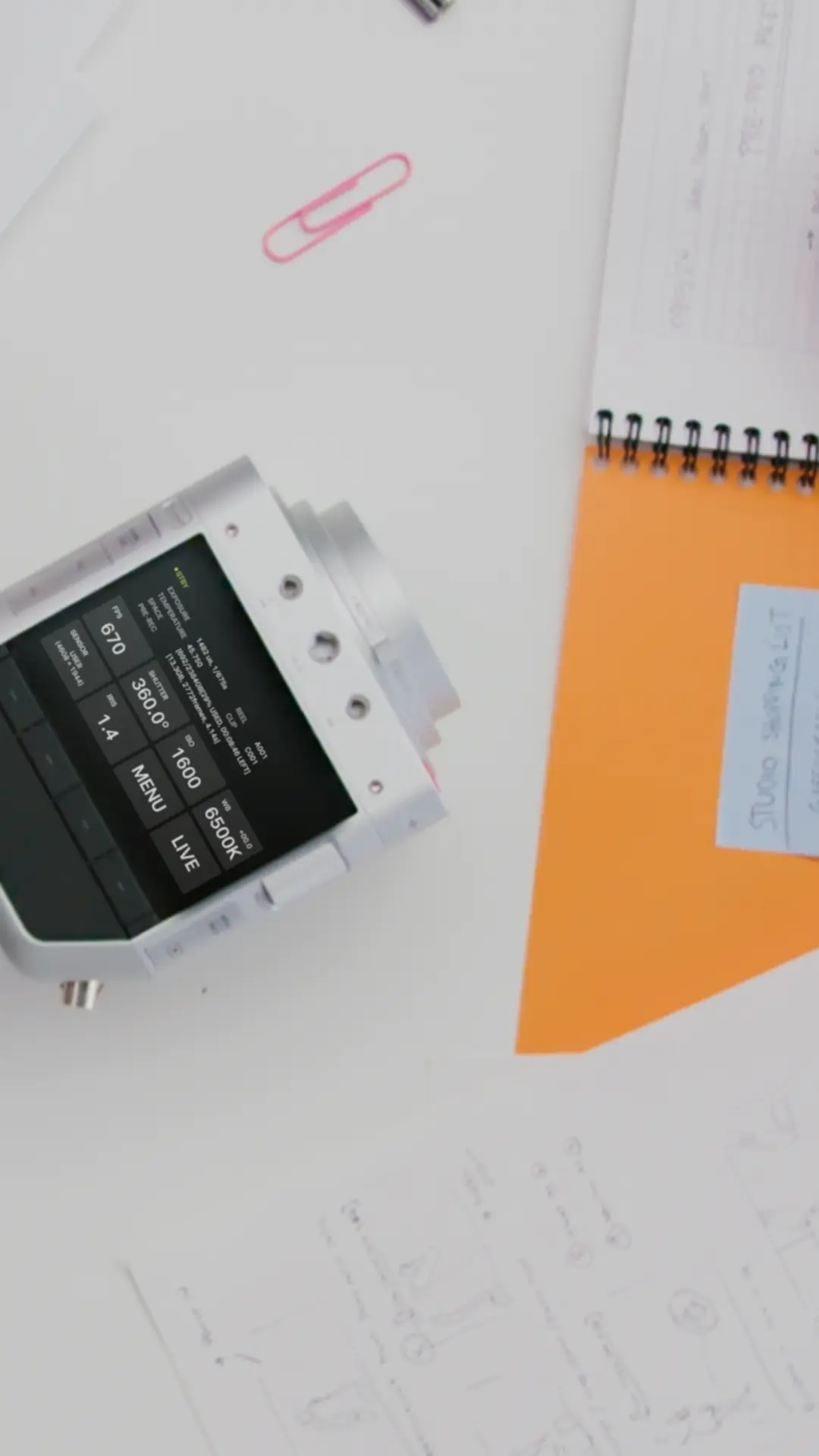

Overhead view of a designer’s desk with sketches, storyboards and a Spark camera among them

OS & Control

Elegance
in Every Touch.

Intuitive Control at Your Fingertips

Dual control:
intuitive touchscreen and full physical buttons.

Pixboom OS delivers an intuitive experience that feels instantly familiar to filmmakers. Navigate effortlessly with responsive touchscreen gestures or dedicated physical buttons—giving you complete control whether you prefer tactile feedback or streamlined touch operation.

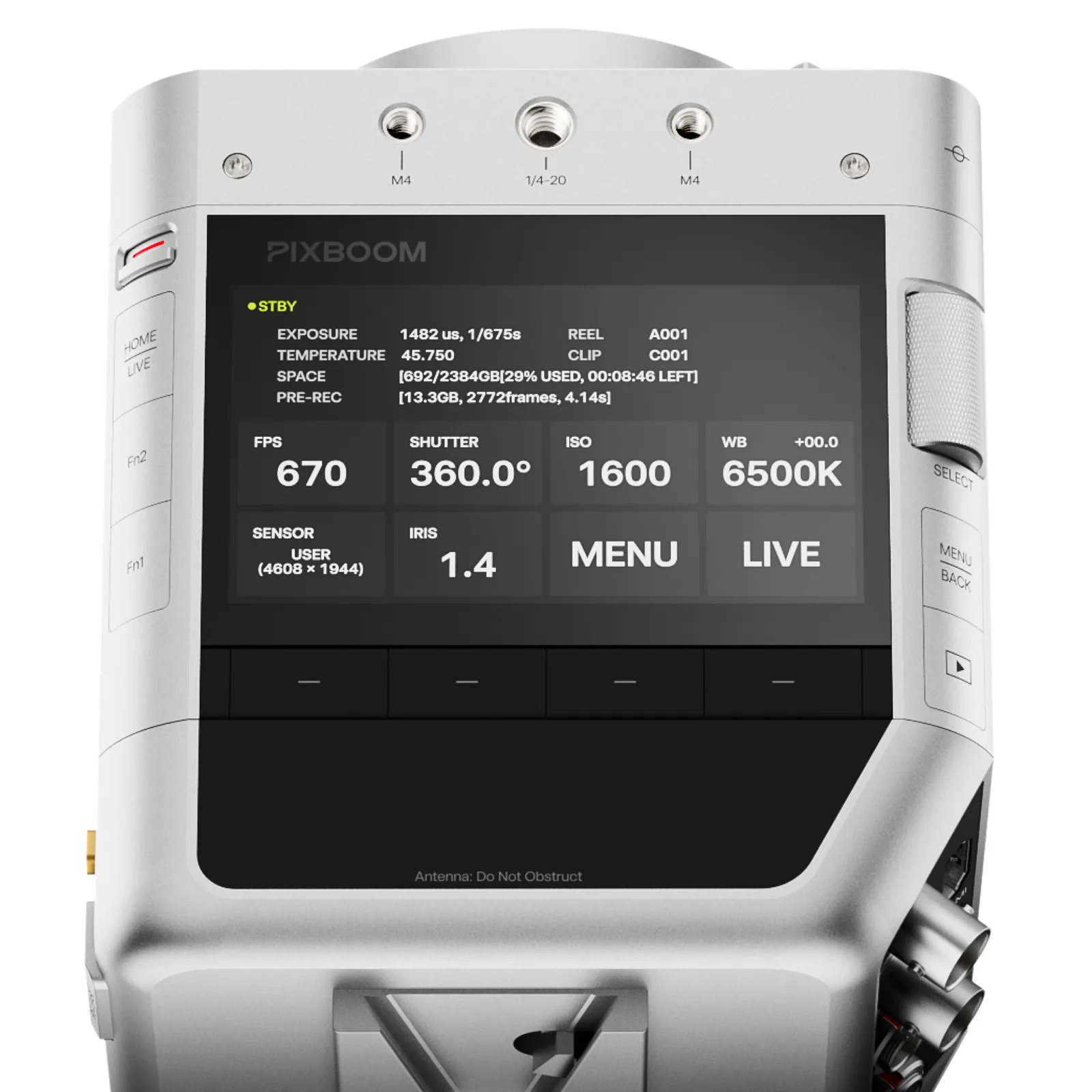

The Spark camera’s rear touchscreen showing Pixboom OS in standby, with frame rate, shutter angle, ISO and white balance tiles alongside the physical buttons

Wireless Freedom

Control without boundaries.

Monitor and adjust your Spark remotely via WiFi connection with HD preview. Change camera settings, start/stop recording, and monitor your composition from your mobile device—perfect for complex setups, remote positions, or when operating solo in challenging environments.

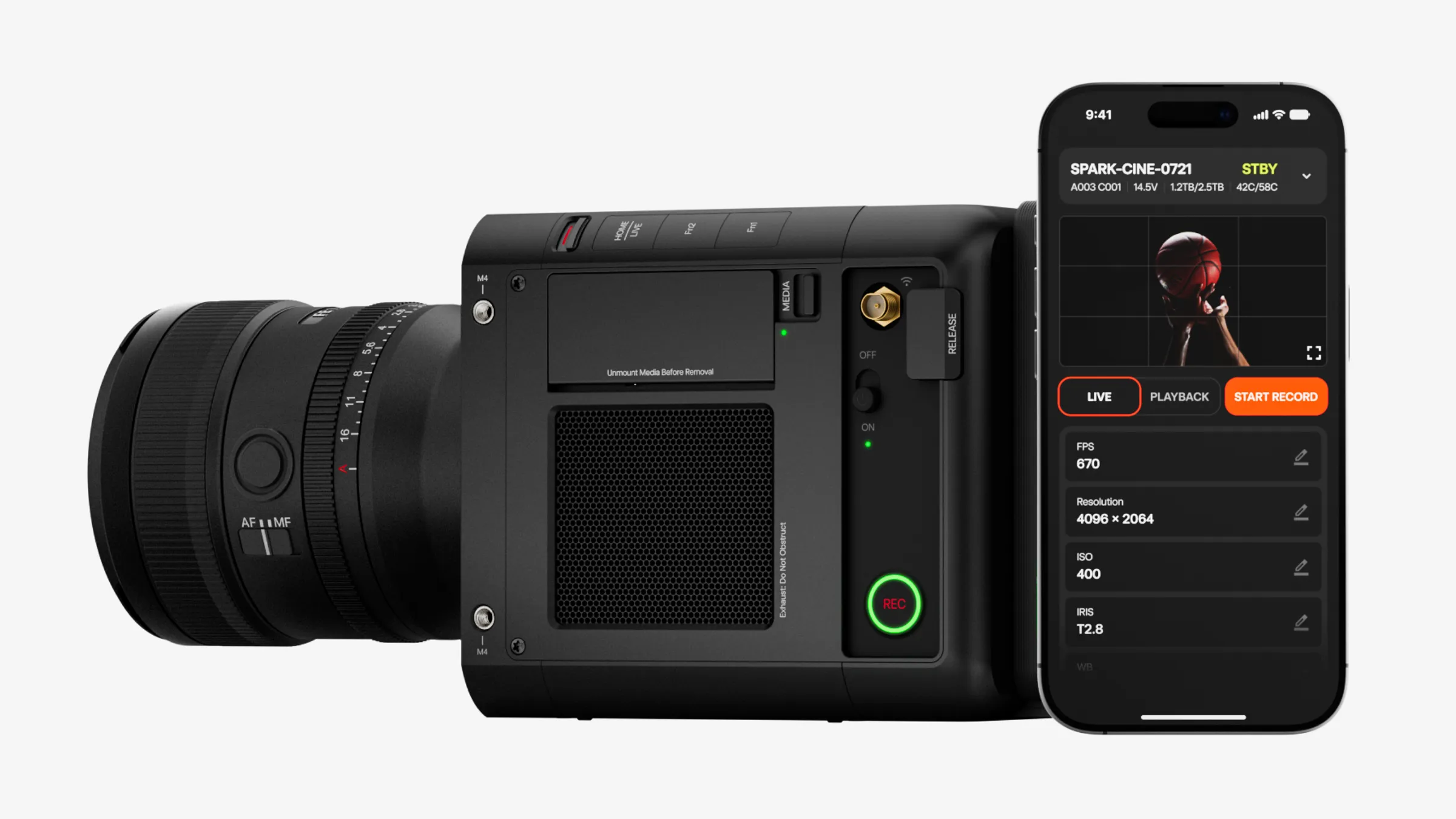

A Spark camera beside an iPhone running the Spark app, showing a live preview with frame rate, resolution, ISO and iris controls

Post-Production Software

All-in-One Post Workflow with Pixboom Cine.

Pixboom Cine brings high-speed footage review, playback control, and format conversion into one streamlined workflow. Support for H.264, H.265, ProRes, and CinemaDNG provides flexible options for editing, color grading, and final delivery.

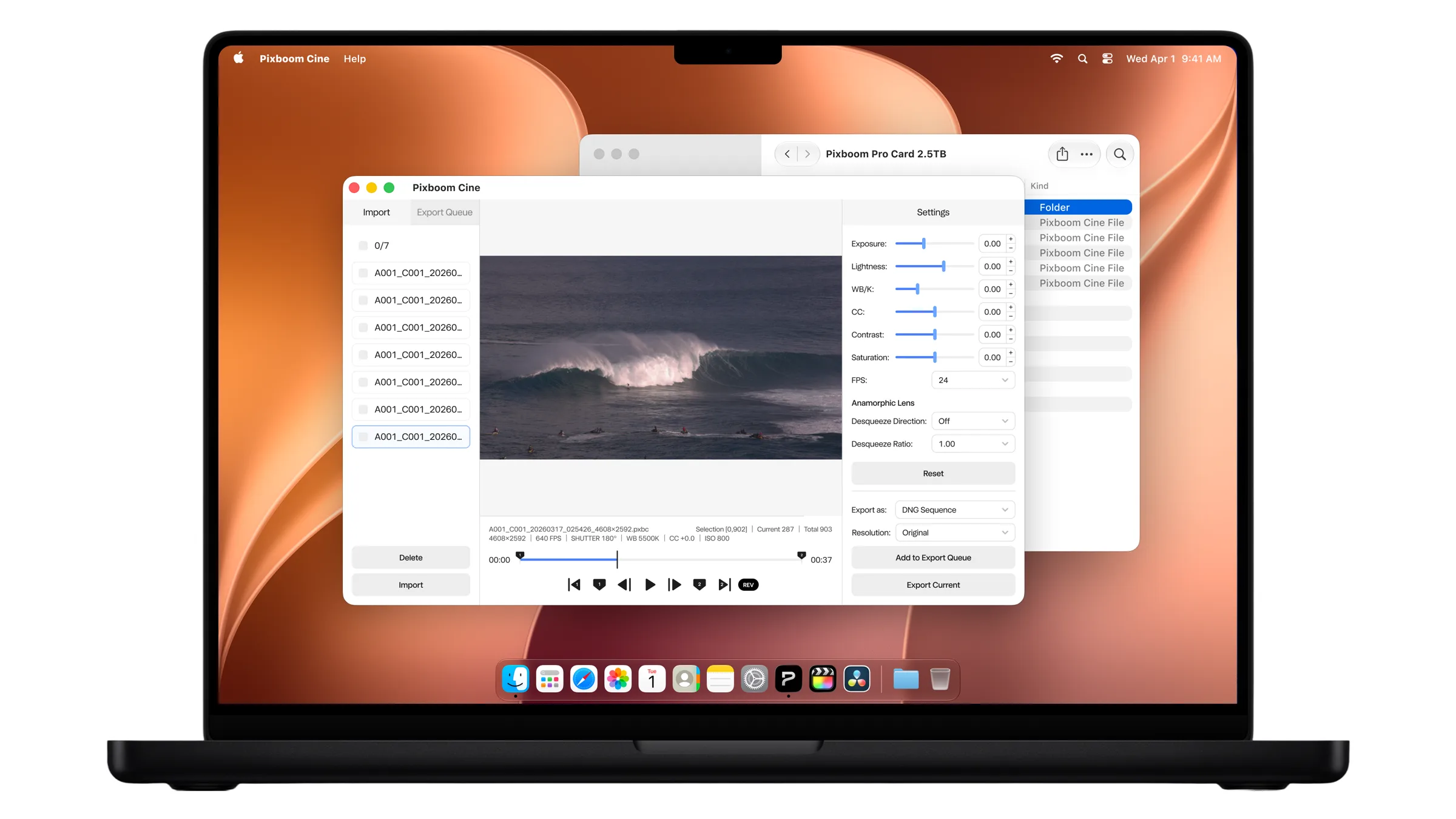

A MacBook running Pixboom Cine, with a clip list, video preview and the grading and export panels open

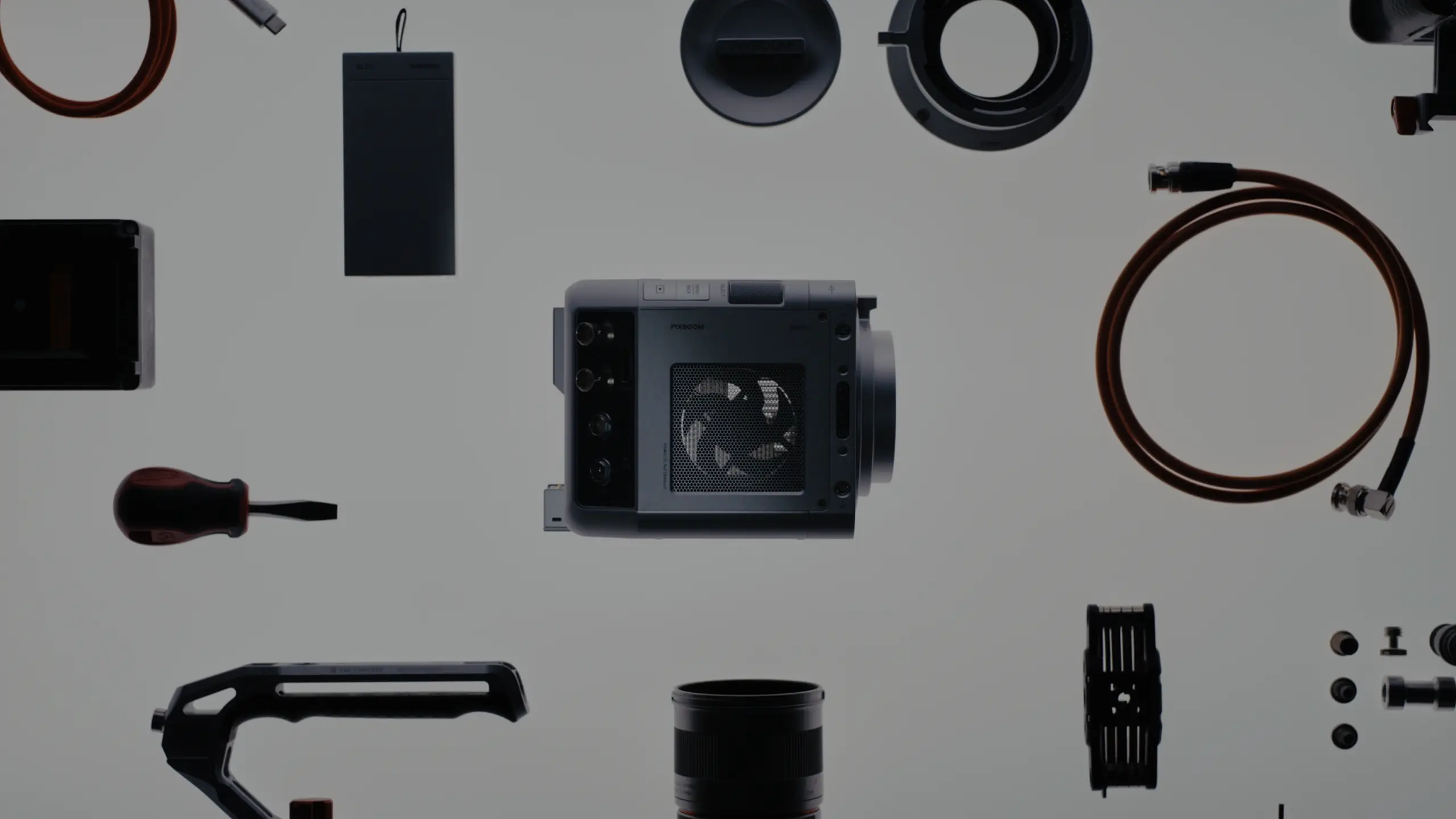

Spark camera surrounded by lenses, cables, tools and rig accessories laid out on a light surface

Take A Closer Look.

The Spark camera’s connector panel with SDI, sync, HDMI, EXT, USB and DC-in ports

Professional Integration. Ready for Anything.

12G-SDI

HDMI 2.0

Integrated I/O

V-Lock

Cooling System

A car on a camera rig with a robotic crane arm in a studio

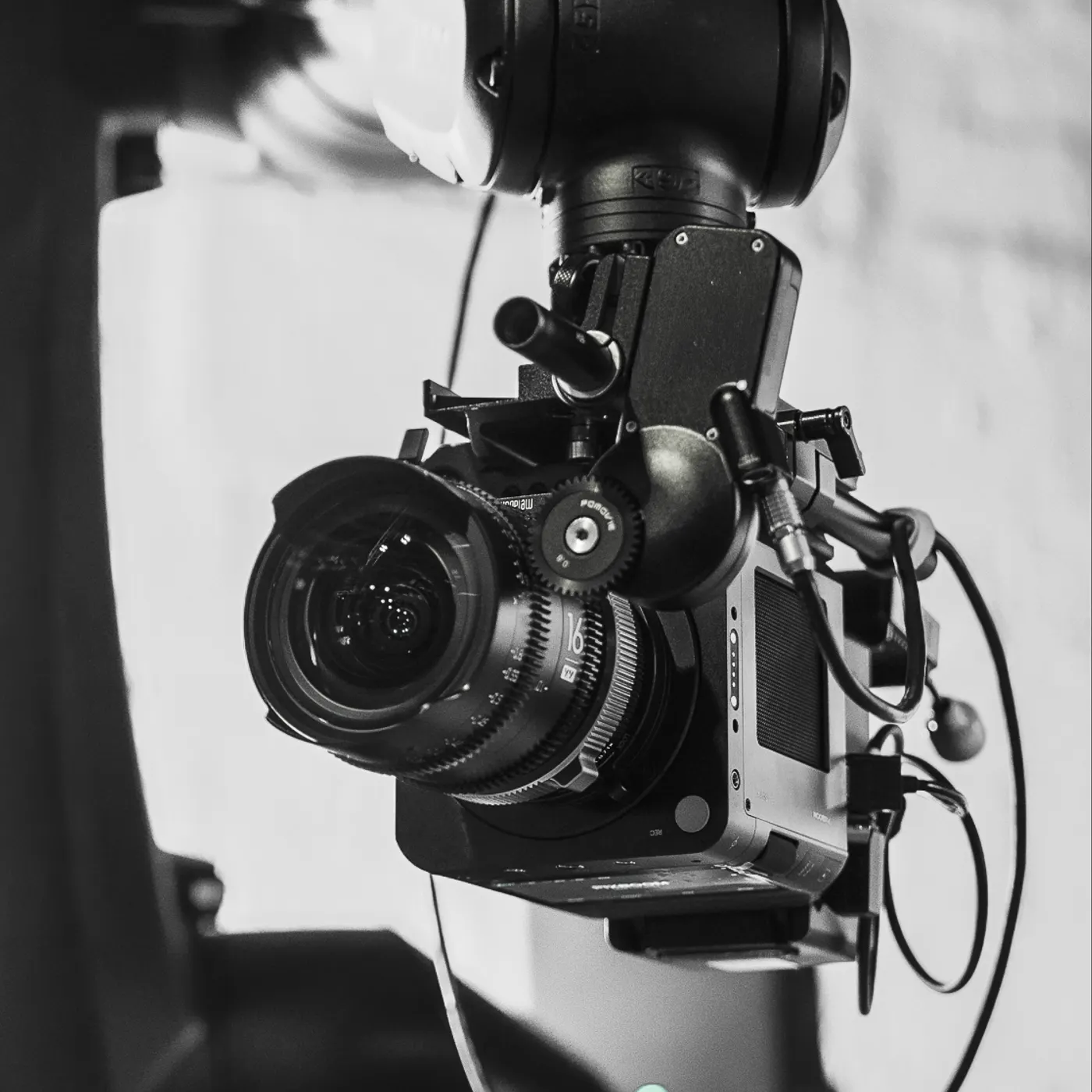

A Spark camera mounted on a motion-control robotic arm

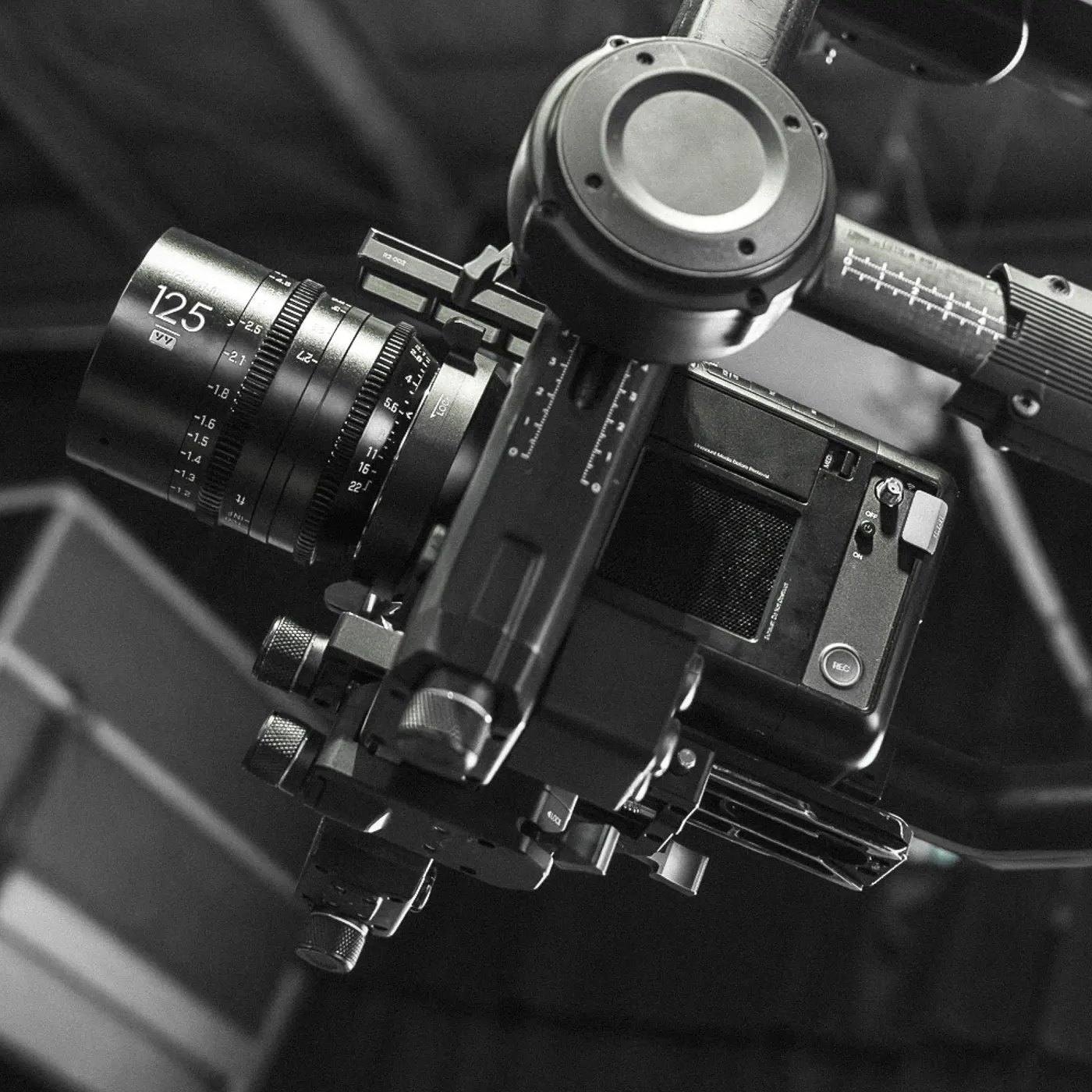

A Spark camera on a gimbal head with a cine lens

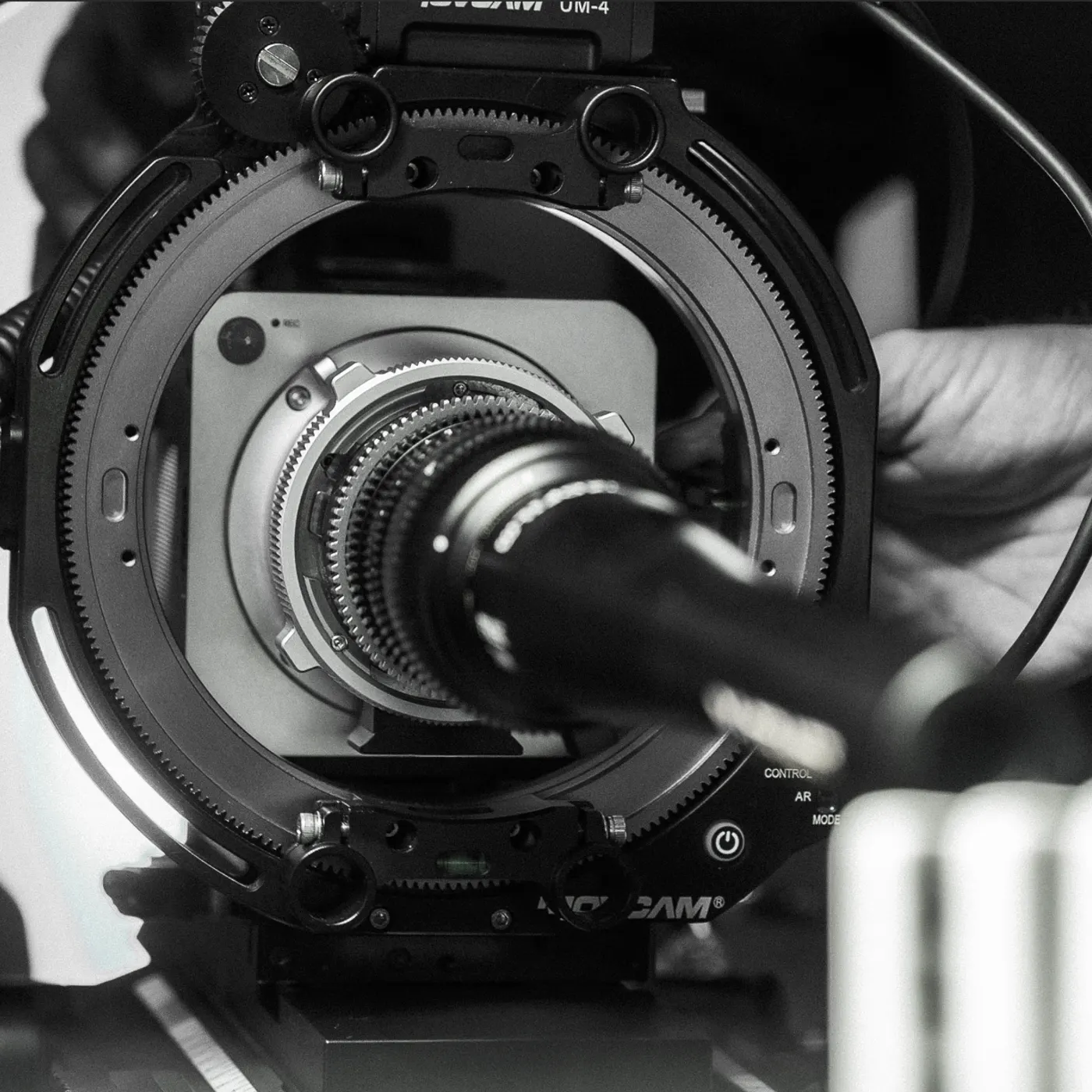

Close-up of a follow-focus and matte box rig around a Spark camera

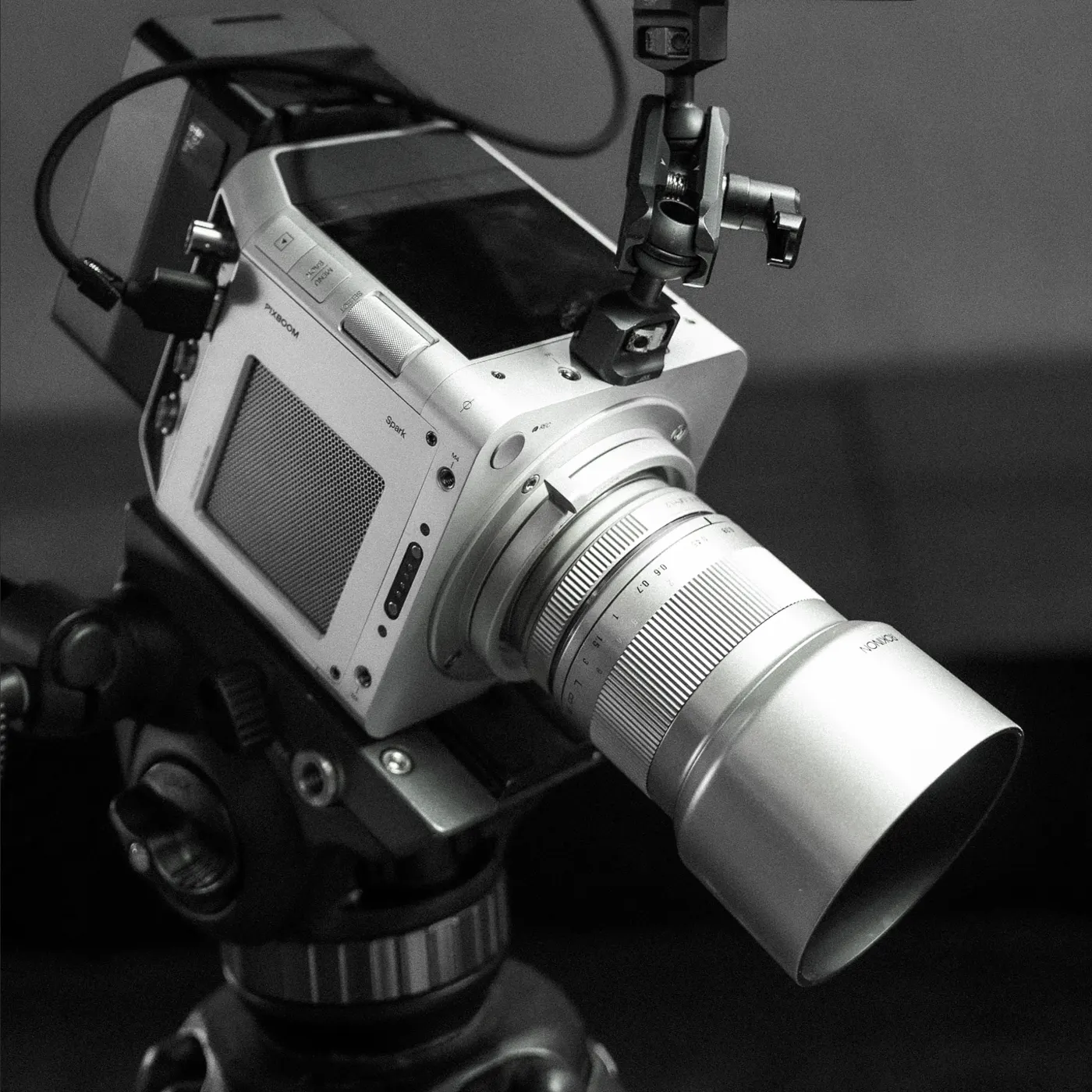

A Spark camera with a long macro lens on a tripod, set up for a tabletop product shot

Unlock Cinematic Slow-Mo. On Any Rig.

Trusted by Industry Professionals.

Newsshooter Best of Show Award at NAB 2025
CineD Best of Show Award at IBC 2025
IF Design Award 2026
Golden Pin Design Award 2025

What’s in the box.

Pixboom Spark Camera × 1
Pixboom Pro Card 2.5TB × 1
Pixboom Mount Adapter × 1

Warranty & After-Sales Service.

2-Year Warranty Coverage you can trust
Local Repair Centers Support in key countries
24Hr Response Quick help when you need it

FAQ

What makes Pixboom Spark different from other cameras?

Pixboom Spark brings Hollywood-level slow motion into a compact, creator-friendly package. Engineered with breakthrough technology once reserved for systems costing many times more, the Pixboom Spark combines uncompromising image fidelity, truly unlimited RAW capture, and a fully integrated workflow—delivering flagship-tier performance at a fraction of the cost of traditional high-speed cameras.

What frame rates and resolutions does Pixboom Spark support?

The camera unlocks breathtaking slow-motion imagery at a range of resolutions and frame rates:

· 670 fps at 4.6K Open Gate 3:2 (4608 x 3072)

· 887 fps at 4K 16:9 (4096 x 2304)

· 1171 fps at 4K 2.37:1 (4096 x 1728)

· 1724 fps at 2K 16:9 (2048 x 1152)

· 2182 fps at 2K 2.37:1 (2048 x 864)

Does Pixboom Spark have interchangeable lens mount adapters?

Yes. The Pixboom mount is fully interchangeable with mirrorless adapters. You can choose Pixboom Mount to E, PL, or EF adapters to fit your preferred lenses.

How does Pixboom Spark handle low-light conditions?

Pixboom Spark uses a back-side illuminated (BSI) sensor with dual native ISO. Combined with large photosites, this gives the camera an almost uncanny ability to "see in the dark." Filmmakers can capture stunningly clean, cinematic slow-motion in lighting conditions where traditional high-speed cameras simply fail. Night exteriors, candlelit interiors, or under-lit stages all become playgrounds for slow-motion storytelling.

What formats/codecs does Pixboom Spark record in?

Pixboom Spark records in unlimited RAW recording with no RAM buffer limits—roll as long as the action demands. The formats are optimized for both flexibility and professional workflows, making it easy to edit and integrate into your favorite software. Pixboom Spark's RAW format retains maximum sensor data, preserving detail, color, and latitude while keeping file sizes manageable.

What wireless and remote control options are available?

Wireless: Wi-Fi control via Pixboom's web interface or mobile app

Wired: USB-C or EXT port control

These options allow you to trigger captures, adjust settings, and control playback remotely for a more flexible shooting workflow.

*These features are currently under development and will be enabled through future firmware updates.

How can I review or transfer footage?

Footage can be previewed instantly on the built-in screen or transferred to a computer via the Pixboom Pro Card or USB-C connection.

Specifications

Sensor Specs

Sensor readout	Global shutter
Sensor type	14.2 MP Super 35 mm global shutter CMOS
Sensor size	4608 × 3072 \| 25.34 × 16.90 mm (diagonal: 30.46 mm)
Dynamic range	13 stops

Mount Type

Type	Interchangeable locking mount (E, EF, PL)
Electronic communication	Support

General

Weight (body only)	Approx. 2.42 lb (1.1 kg)
Material	Aluminum alloy
Dimensions (excluding the mount adapter)	4.25 × 4.33 × 5.12 in (108 × 110 × 130 mm)  (H × W × L, largest fixed dimensions)
Media type	Removable Pixboom Pro Card
Media type export speed	20 Gbps (USB 3.2 Gen 2×2)
Media export method	Export via Type-C without requiring any card reader
Screen	3.5 in 6.22 M-dot 16:9 screen
Battery attachment	Integrated V-Lock battery interface optimized for V-Lock batteries

Environmental

Operating temperature	32 °F to 104 °F (0 °C to 40 °C)
Relative humidity	0% to 85% non-condensing
Storage temperature	−4 °F to 140 °F (−25 °C to 60 °C)

Recording

Max data rates	Up to 10 GB/s using Pixboom Pro Card
Pixboom RAW solution max frame rates	4.6K Open Gate (3:2): 4608 × 3072 @ 670 fps 4.6K (16:9): 4608 × 2592 @ 781 fps 4.6K (2:1): 4608 × 2304 @ 887 fps 4.6K (2.37:1): 4608 × 1944 @ 1025 fps 4.6K (4:1): 4608 × 1152 @ 1724 fps 4K (16:9): 4096 × 2304 @ 887 fps 4K (2:1): 4096 × 2048 @ 994 fps 4K (2.37:1): 4096 × 1728 @ 1171 fps 4K (4:1): 4096 × 1024 @ 1926 fps 2K (16:9): 2048 × 1152 @ 1724 fps 2K (2.37:1): 2048 × 864 @ 2182 fps 2K (4:1): 2048 × 512 @ 3625 fps
Supported formats	4.6K (Open Gate 3:2, 16:9, 2:1, 2.37:1, 4:1) 4K (16:9, 2:1, 2.37:1, 4:1) 2K (16:9, 2.37:1, 4:1) Custom Resolution
Max. resolution	4.6K Open Gate (3:2): 4608 × 3072
Max. frame rate	Up to 3625 fps (depending on selected resolution)
Exposure control	Shutter angle adjustment
ISO	400 640 800 1250 1600
White balance	Adjustable Kelvin (K) and CC (green/magenta offset)
Video outputs	SDI: 12G-SDI output HDMI: HDMI 2.0 output Sync Port: Genlock/Timecode support via extension port
Mechanical mounting	1/4-20 3/8-16 Multiple M4 mounting points
Cooling system	Active cooling with intake and exhaust ventilation
Recording media	Dedicated Pixboom Pro Card

Features

Remote control	Wi-Fi local area network for camera control UART control via 9-pin EXT port
Wi-Fi/Bluetooth frequency band	2400-2483.5 MHz 5150-5350 MHz 5725-5850 MHz
Max. RF power transmit	≤20 dBm EIRP in the 2400–2483.5 MHz band ≤20 dBm EIRP in the 5150–5350 MHz band ≤33 dBm EIRP in the 5725–5850 MHz band (or ≤20/23 dBm EIRP where TPC is not supported)
Monitor outputs	Integrated touchscreen LCD with preview and camera control 12G-SDI for 4K output HDMI 2.0 for 4K output
Additional I/O^[1]	Genlock through 9-pin EXT port Linear Timecode (LTC) through 9-pin EXT port GPIO through 9-pin EXT port

Software

Pixboom control^[2]	Access full camera controls and live preview from mobile devices.
Pixboom Cine	Pixboom RAW Processing Software (Windows & macOS)

[1] These features are under development and will require the upcoming Pixboom I/O Expansion Port accessory.

[2] These features are under development and will be enabled via future firmware updates.

	Recording Codec	Recording Resolution		Max. FPS	Sensor Active Image Area (photosites)		Recording File Image Content (pixel)		Sensor Image Area (mm)		Image Circle (mm)
4.6K Open Gate 3:2	Pixboom Raw	4608	3072	670	4608	3072	4608	3072	25.34	16.90	30.46
4.6K 16:9	Pixboom Raw	4608	2592	781	4608	2592	4608	2592	25.34	14.26	29.08
4.6K 2:1	Pixboom Raw	4608	2304	887	4608	2304	4608	2304	25.34	12.67	28.34
4.6K 2.37:1	Pixboom Raw	4608	1944	1025	4608	1944	4608	1944	25.34	10.69	27.51
4.6K 4:1	Pixboom Raw	4608	1152	1724	4608	1152	4608	1152	25.34	6.34	26.12
4K 16:9	Pixboom Raw	4096	2304	887	4096	2304	4096	2304	22.53	12.67	25.85
4K 2:1	Pixboom Raw	4096	2048	994	4096	2048	4096	2048	22.53	11.26	25.19
4K 2.37:1	Pixboom Raw	4096	1728	1171	4096	1728	4096	1728	22.53	9.50	24.45
4K 4:1	Pixboom Raw	4096	1024	1926	4096	1024	4096	1024	22.53	5.63	23.22
2K 16:9	Pixboom Raw	2048	1152	1724	2048	1152	2048	1152	11.26	6.34	12.92
2K 2.37:1	Pixboom Raw	2048	864	2182	2048	864	2048	864	11.26	4.75	12.23
2K 4:1	Pixboom Raw	2048	512	3625	2048	512	2048	512	11.26	2.82	11.61

Unleashing thePower of Slo-Mo.

Get TheSparks.

High Sensitivity

All-in-One Body Design

Pixboom RAW Solution

See the Unseen.

Get TheSparks.

High Sensitivity

All-in-One Body Design

Pixboom RAW Solution

Built from the Core.

High-integration aluminum unibody.

S35 BSI Sensor with Global Shutter.

Versatile Electronic Mount System.

20Gbps 2.5TB Pluggable Storage.

3.5-inch, 6.22M-dot touchscreen.

Built from the Core.

High-integration aluminum unibody.

See the Unseen.

Experience Motionin Unprecedented Detail.

Find Clarity in the Darkness.

Speed Without Distortion.

From Bright Sun to Low Light,Without Compromise.

Never InterruptYour Flow.

Unlimited Recording Time.

Capture what happens before you press record.

Expand your horizon in real-time.

Capture in True RAW.

Define your resolution, unleash impossible speeds.

Elegancein Every Touch.

Dual control:intuitive touchscreen and full physical buttons.

Control without boundaries.

All-in-One Post Workflow with Pixboom Cine.

Take A Closer Look.

Professional Integration. Ready for Anything.

Trusted by Industry Professionals.

What’s in the box.

Warranty & After-Sales Service.

FAQ

Specifications

Sensor Specs

Mount Type

General

Environmental

Recording

Features

Software

Cart

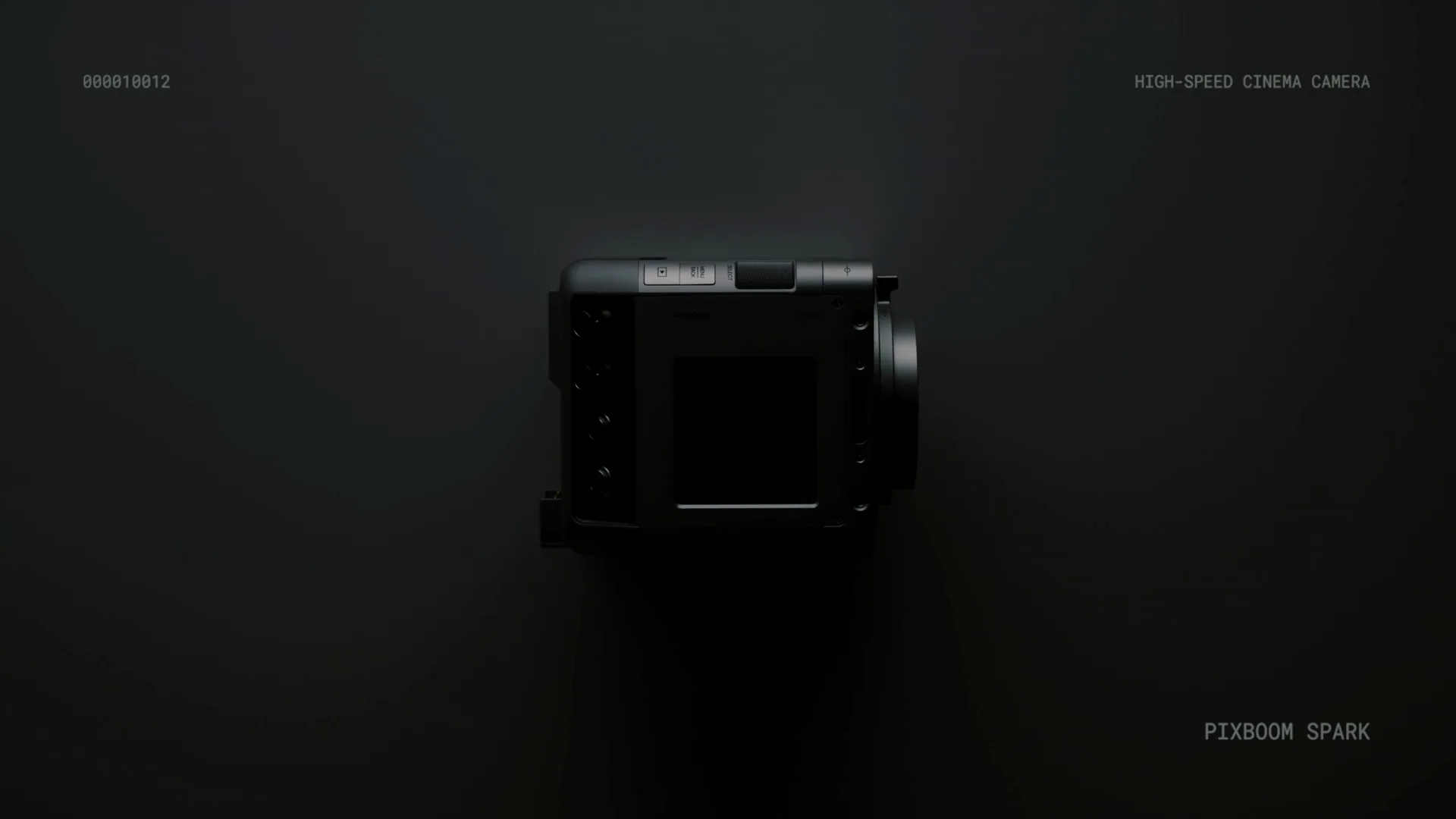

Unleashing the
Power of Slo-Mo.

Get The
Sparks.

Get The
Sparks.

Experience Motion
in Unprecedented Detail.

From Bright Sun to Low Light,
Without Compromise.

Never Interrupt
Your Flow.

Elegance
in Every Touch.

Dual control:
intuitive touchscreen and full physical buttons.
